Wireless Freedom, Easy Visual Set Up

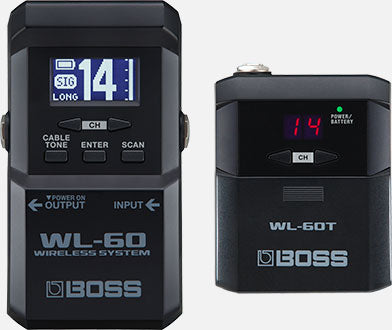

Offering great tone, ultra-low latency, and effortless set up, BOSS’s revolutionary WL series has made it easier than ever for musicians to go wireless. The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries.
- Specifications (RECEIVER)
- Wireless Format
- BOSS proprietary digital audio format
- Wireless carrier frequency
- 2.4 GHz
- Compatible Channels
- 14 (May vary due to local conditions)
- Transmission Range
- 65 feet line-of-sight (May vary due to local conditions)
- Latency
- 2.3 ms
- Dynamic Range
- 110 dB or greater
- Frequency Response
- 20 Hz--20 kHz
- Nominal Input Level
- -10 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -10 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater

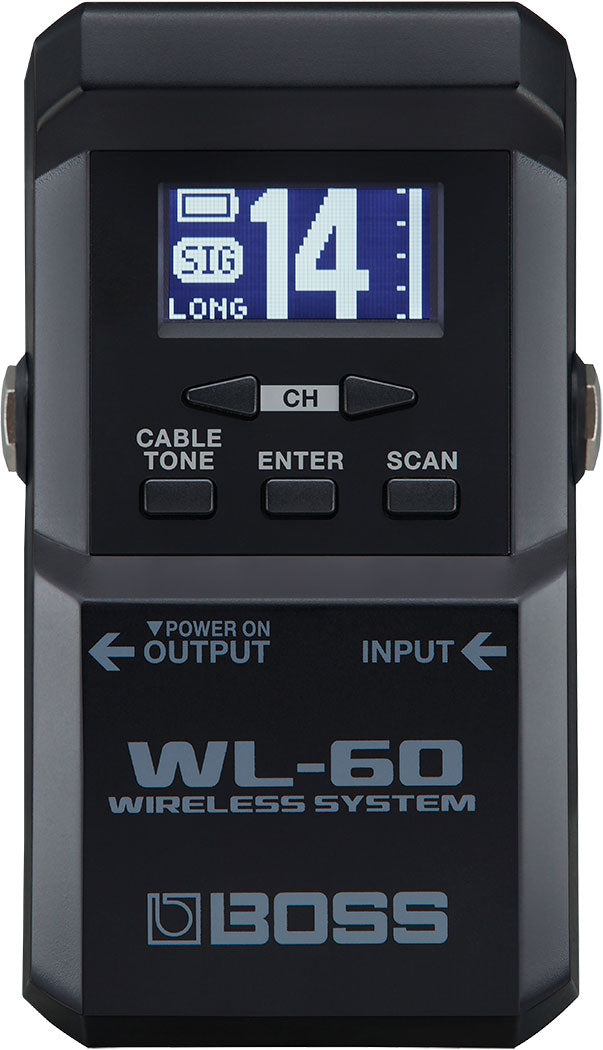

- Controls
- CH button
SCAN button
ENTER button
CABLE TONE button - Indicators
- Graphic LCD 64 x 32 dots
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type

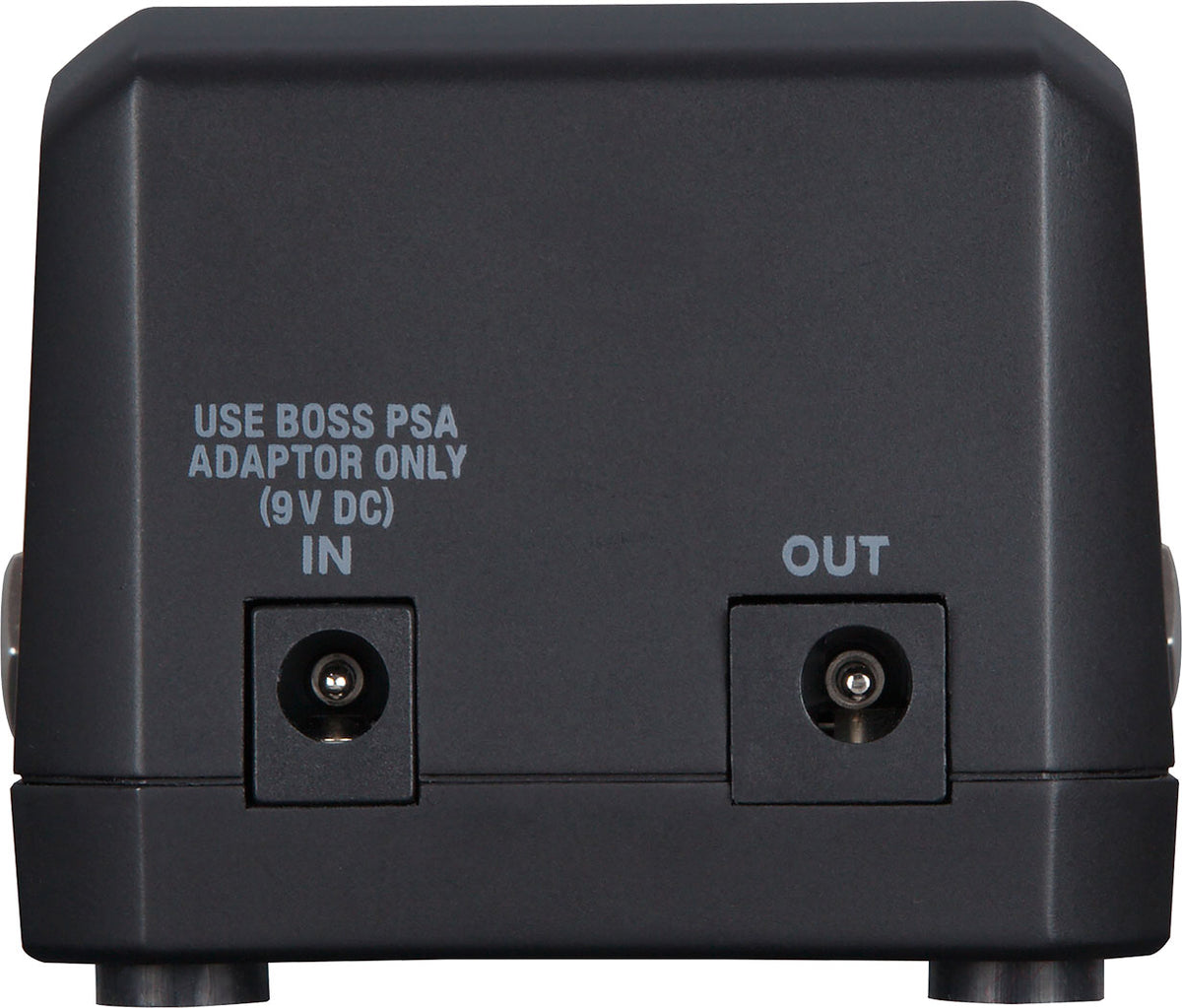

IN jack
OUT jack - Power Supply
- Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately) - Current Draw
- 100 mA
- Expected battery life under continuous use
- Alkaline battery (AA, LR6): Approximately 7 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Guitar cable
Rubber foot x 4
Alkaline battery (AA, LR6) x 2 - Options (sold separately)
- AC adaptor: PSA-S series
Parallel DC cord: PCS-20A (DC Plug x8) - Size and Weight (RECEIVER)
- Width
- 70 mm
2-13/16 inches - Depth
- 120 mm
4-3/4 inches - Height(excluding rubber foot)
- 54 mm
2-1/8 inches - Height(including rubber foot)
- 57 mm
2-1/4 inches - Weight (excluding battery)
- 180 g
7 oz - Weight (including battery)
- 220 g

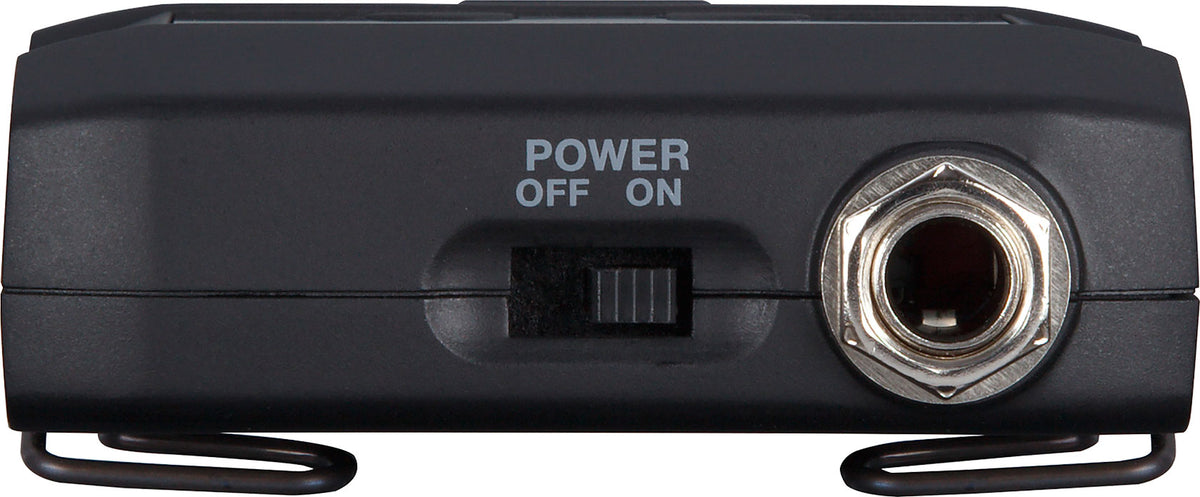

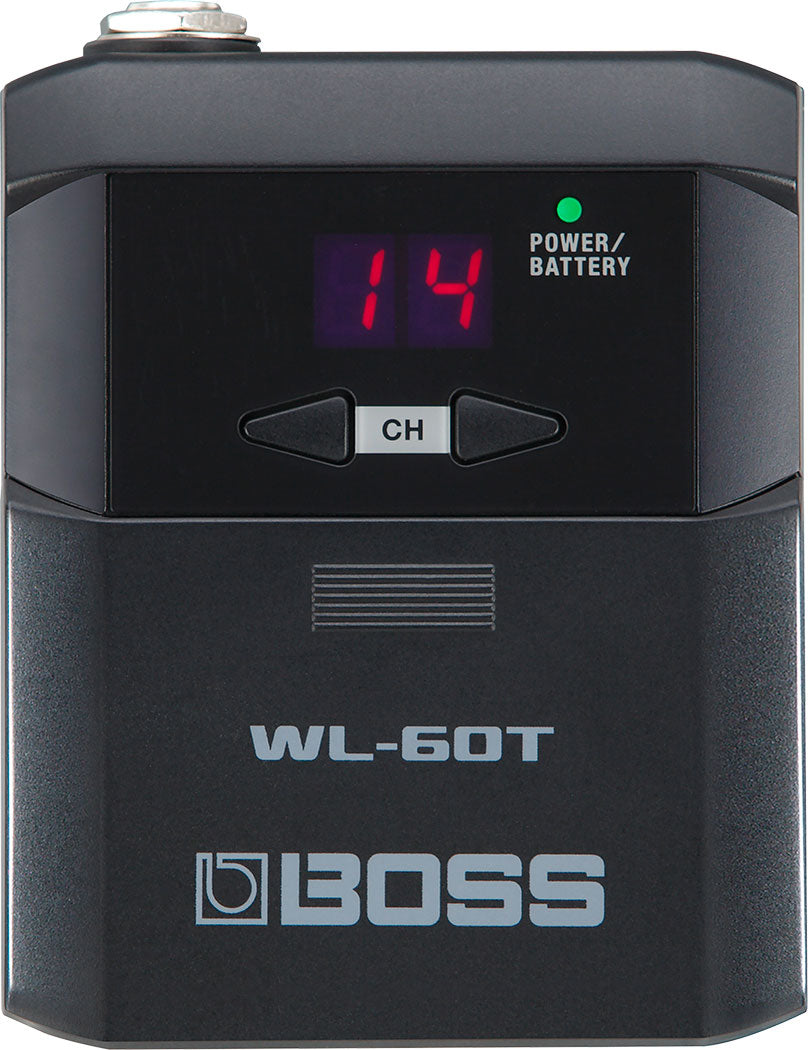

8 oz - Specifications (TRANSMITTER (WL-60T))
- Nominal Input Level
- -10 dBu (1 M ohm)
- Controls
- POWER switch
CH button - Display
- 7 segments, 2 characters (LED)
- Indicator
- POWER/BATTERY
- Connectors
- INPUT jack: 1/4-inch phone type
- Power Supply
- Alkaline battery (AA, LR6) x 2
- Current Draw
- 110 mA
- Expected Battery Life Under Continuous Use
- Alkaline battery (AA, LR6): Approximately 25 hours
* These figures will vary depending on the actual conditions of use. - Size and Weight (TRANSMITTER (WL-60T))
- Width
- 68 mm
2-11/16 inches - Depth
- 88 mm
3-1/2 inches - Height (including strap clip)
- 30 mm
1-3/16 inches - Weight (including battery)
- 120 g
5 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
