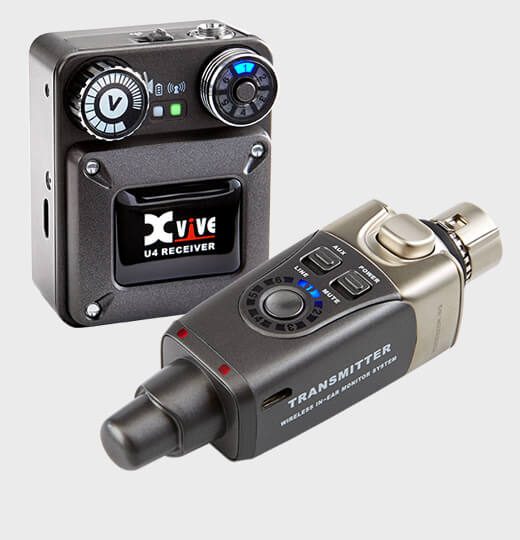

U4 In-Ear Monitor Wireless System
U4 Complete System
- High-quality, ultra-compact wireless system for in-ear monitors
- Audiophile 24-bit / 48 kHz sound with less than 5 ms of latency
- Industry standard 2.4 GHz wireless technology
- Reliable, solid RF connection over a range of 90 feet
- Can also wirelessly broadcast to an audio recorder or mixer
Specifications
|
WIRELESS TYPE |
2.4 GHz ISM worldwide open band |
|
BIT DEPTH/SAMPLE RATE |
24-bit / 48 kHz |
|
SWITCHABLE CHANNELS |
6 |
|
SIMULTANEOUS CHANNELS |
6 |
|
FREQUENCY RESPONSE |
20 Hz – 20 kHz (-3dB) |
|
DYNAMIC RANGE |
107 dB (-3 dB) |
|
SIGNAL-TO-NOISE RATIO |
107 dB |
|
STEREO/MONO |
Mono |
|
TOTAL HARMONIC DISTORTION |
0.2% |
|
LATENCY |
5 ms |
|
OPERATING RANGE |
27.5 m / 90 ft (line-of-sight) |
| TRANSMITTER | |
|---|---|
|
INCLUDED |
U4T |
|
CONNECTOR |
XLR or mono unbalanced 1/4” TS with supplied adapter |
|
DIMENSIONS |
100 x 30 x 28 mm / 3.8" x 1.2" x 1.1" |
|
WEIGHT |
90 g / 3.17 oz |
| RECEIVER | |
|---|---|
|
INCLUDED |
U4R |
|
HEADPHONE OUTPUT |
3.5 mm / 1/8" |
|
DIMENSIONS |
60 x 47 x 41 mm / 2.36" x 1.85" x 1.61" |
|
WEIGHT |
118 g / 4.16 oz |
| BATTERY | |
|---|---|
|
TYPE |
Rechargeable Lithium-ion (internal) |
|
BATTERY LIFE |
5 hours |
|
CHARGING TIME |
2.5 hrs (full charge) |
|
CHARGING VOLTAGE |
5V (USB) |
|
USABLE WHILE CHARGING |
Yes |
